HIOKI DT-4253 Digital Multimeter

HIOKI DIGITAL MULTIMETER DT4253
Standard DMM with Temperature and Clamp Current Testing for HVAC Applications
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4253 is a digital multimeter designed specifically for HVAC testing, with ±0.5% DC V accuracy, temperature and clamp sensor testing, and wide 40 Hz to 1kHz bandwidth.

Overview

• ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
• Low-pass filter (100 Hz/ 500 Hz) cuts high harmonics
• Includes multiple measurement functions such as temperature (only for DT4253), capacitance, and frequency
• Measures large currents with optional clamp on probe (only for DT4251,DT4253)
• USB communications function supports PC measurements (optional)
• Broad -10 (14°F) to 50°C (122°F) operating temperature range

Specification
Regarding DMM Accuracy
Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC voltage	600.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.3 % rdg. ±5 dgt.
AC voltage 40 to 500 Hz	6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy: ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance	600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC current	60.00 μA to 60.00 mA, 4 ranges, Basic accuracy: ±0.8 % rdg. ±5 dgt.
AC current, 40 to 500 Hz	N/A
AC current (use with the clamp on probes) 45 to 1k Hz	10.00 A to 1000 A, 7 ranges Add the Clamp on probe accuracy to Basic accuracy: ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
Temperature (use with DT4910)	K: -40.0 to 400.0 °C, Add the Temperature probe accuracy to Basic accuracy: ±0.5 % rdg. ±2 °C
Voltage detection	N/A
C (capacitance)	1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency	AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V) Basic accuracy: ±0.1 % rdg. ±1 dgt.
Continuity check	Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test	Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
Other functions	Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)
Display	Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates	5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )
Power supply	LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
Dimensions and mass	84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)

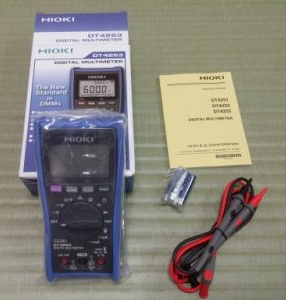

Accessories	Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
